106529-2
Manufacturer:
TE Connectivity
Mfr.Part #:
106529-2
Datasheet:
Description:

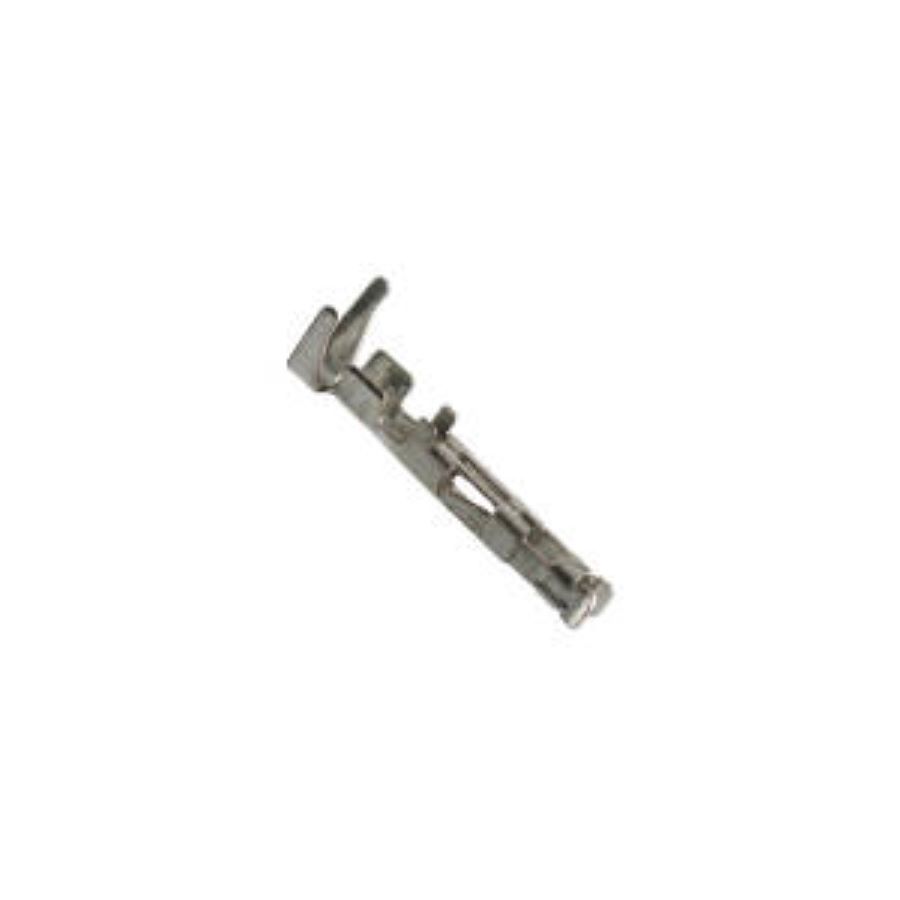

Terminals Cable 22 AWG Female
| Parameter | Value |
|---|---|
| Length | 14.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 4.4 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 3.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Current Rating | 9 A |
| Max Current Rating | 9 A |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 years ago) |
| Gender | Female |
| Shielding | Unshielded |
| Number of Contacts | 36 |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 22 AWG |
| Circuit Application | Power |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 9 A |
| Wire Gauge (Max) | 22 AWG |
| Wire Gauge (Min) | 18 AWG |
| Insulation Diameter | 2.3876 mm |
| Contact Gender | Female |
